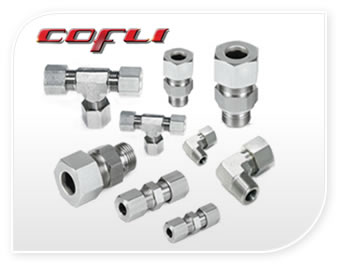

Tubing
Fittings |
|
 |
|
 |
|
Applications Process instrumentation, High Temperaure and Cryogenic service, High pressure service, Vacuum service. Features Tow errule design. Stainless Steel, Duplex, Crbon steel, hastelloy, Alloy400,600,825... Gaugeaility - Vibration resistance, Excellent Leak-Free Sealing System in high thermal stresses and high impulse.
Specifications Maximum Working Pressure: 9000psi(621bar)@100˚F(38˚F) Working Temperature Range: -320˚F to 1200˚F(-196˚C to 649˚C) |
|
i-Fittings |
|
 |
|
|
|
|
|
Applications Process instrumentation, High Temperaure and Cryogenic service, High pressure service, Vacuum service. Features Tow errule design. Stainless Steel, Duplex, Crbon steel, hastelloy, Alloy400,600,825... Gaugeaility - Vibration resistance, Excellent Leak-Free Sealing System in high thermal stresses and high impulse.
Specifications Maximum Working Pressure: 9000psi(621bar)@100˚F(38˚F) Working Temperature Range: -320˚F to 1200˚F(-196˚C to 649˚C) |
|

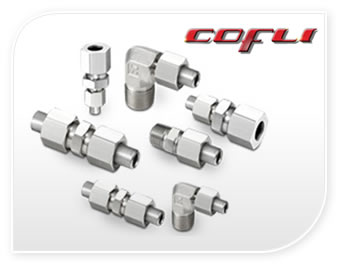

Tube Fittings for JIS & KS |
|
 |
|
|
|
|
|
Introduction Bite type fitting consists of three parts : BODY, SLEEVE and NUT, and is designed to work over medium and heavy wall tubing. See Fig.
The make up of the fitting is critical in that the tube must be bottomed against the tube stop in the body or presetting tool during make up. If it is not bottomed the tube will move forward with the sleeve and a bite will not be achieved. Make sure the tube is bottomed. A check is possible to see if the tube was bottomed during make up. To make this check look at the end of the tube, and notice if a circular appearing ring has been impressed into the tube end face. This impression will be caused by the tube stop which has a slight reverse angle rather than a flat face. |
|
SAE 37º Tube Fitting |
|
 |
|
|
|
|
|
Applications Hydraulic system. Features 37˚Flare Seal. Stainless Steel, Crbon Steel, Brass According to SAE J514&ISO 8434-2 Useed as hose adapter. Specifications Maximum Working Pressure: 8700psi(600bar)@100˚F(38˚F): With O-Ring Type. 5000psi(345bar)@100˚F(38˚F): With O-Ring Type. And according to SAE J514 Working Temperature Range: Up to 800˚F (427˚C) Up to 800˚F (427˚C) |
|
Bite Type DIN 2353 |
|
|
|
|
|
|
|
Applications Hidraulic, Compressed Air, Fuel Heating, Auto Motive. Features Even after repeated disassemble and remake. Flareless Bite Type Single Cutting Ring design. Stainless Stell, Carbon Steel, Brass Construction According to DIN2353 & ISO8434-1 Specifications Maximum Working Pressure: Very Light(LL) Series PN100bar Light(L) Series PN315bar Heavy(S) Series PN630bar Working Temperature Range: -Up to 800˚F (427˚C) |
|

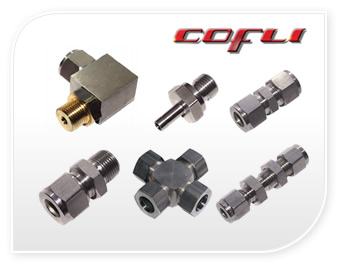

Fittings & Accessories |
|
 |
|
|
|
|
|
Description The following table shows the versatility of the Alco range, and the many different types of end connections and options that can be used to build a valve to suit your requirements. Examine at your leisure the different options displayed below, perhaps you will find just what you need – if not please do not hesitate to contact us for further details. Categories Single & Twin Ferrule Compression Ring Type Tube Fittings In 316ss & Super Alloys DIN 2353 Single Ferrule Tube Fittings in 316ss
|
|

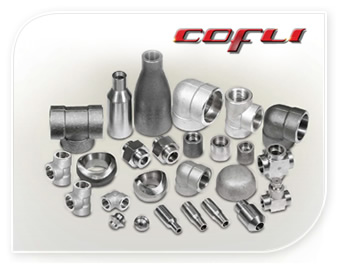

Forged Steel Socket Welding & Threaded Fittingsw |
|
 |
|
|
|
|
|
Pressure Ratings These fittings shall be designated as pressure class 2000,3000 and 6000 fittings for threading and pressure class 3000, 6000 and 9000 for socket-welding. This designation identifies the fittings with their ratings as shown as follows, Table 1. Size identification The size of a fitting is identified by the nominal pipe size. For reducing fittings, the size of the largest run opening is to be given first, followed by the size of the opening opposite of the same run. The branch size of a Tee is given last. Where the case is a Cross, the largest side-outlet is thirdly given, then the opening opposite |
|
 |
 |
 |
 |
 |
 |
