i-Fittings


Applications

Process instrumentation, High Temperaure and Cryogenic service, High pressure service, Vacuum service.

Features

Tow Ferrule design.

Stainless Steel, Duplex, Carbon steel, hastelloy, Alloy400,600,825...

Gaugeaility - Vibration resistance,

Excellent Leak-Free Sealing System in high thermal stresses and high impulse.



Specifications

Maximum Working Pressure:

9000psi(621bar)@100˚F(38˚F)

Working Temperature Range:

-320˚F to 1200˚F(-196˚C to 649˚C)

Unión Recta Reducida

Unión Recta
Bulkhead Unión Reducido
Bulkhead Unión
Rectos Terminal Macho NPT
Rectos Terminal Hembra NPT
Bulkhead Terminal Macho NPT
Bulkhead Terminal Hembra NPT
Codo de 90° Unión Reducido
Codo de 90° Unión
Codo de 90° Terminal Macho NPT
Codo de 45° Terminal Macho NPT
Codo de 90° Terminal Hembra NPT
Tee Unión Reducida al Centro
Tee Unión Reducida Lateral
Tee Terminal Macho NPT al Centro
Tee Terminal Macho NPT Lateral
Tee Terminal Hembra NPT al Centro

Tee Terminal Hembra NPT Lateral


Cruz Unión
Adaptador Terminal OD
Adaptador Terminal Macho NPT
Adaptador Terminal Hembra NPT
Adaptador Terminal Ferrul
Adaptador Terminal Macho JIC
Recto Terminal Macho JIC
Tapón Plug
Tapón CAP
Ferrul Trasero
Ferrul Delantero
Tapón Screen
Set de Ferrules
Set de Tuercas y Ferrules
Tuercas

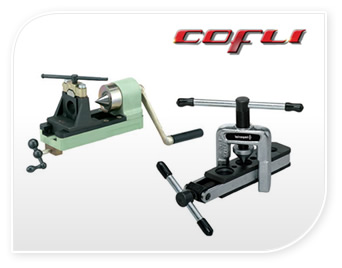

Flaring and swaging


45° ROL-AIR™ FLARING TOOL

Flares and burnishes 3/16”, 1/4”, 5/16”, 3/8”, 1/2” and 5/8” O.D. tubing.

Faceted hardened steel, chrome finished cone rolls out perfect 45 degrees flares above die block and automatically burniches flare face reducing the need for deburring, original wall thickness is maintained at base of flare. Slip on yoke permits use in tight quarters, where there is a little space between nut and tube end.





Heat treated dies grip tubing without scoring.

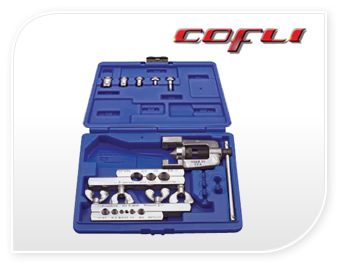

Tubing Tool Kit


45° FLARING, SWAGING AND CUTTING KIT

For soft copper, aluminum, steel, stainless steel and brass tubing.

Kit contains a TC-1000 tube cutter a flaring and swaging tool

include tool case.



45° DOUBLE FLARING, SWAGING AND CUTTING KIT

For soft copper, aluminum, steel, stainless steel and brass tubing.

Kit contains a TC-1000 tube cutter and doble flaring adapters

include tool case.

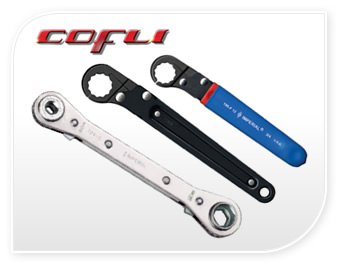

Wrenches


For refrigeration and air conditioning service



Types

  • 127-C

  • 127-CO

  • 124-C

  • 125-C

  • 126-C

  • 195-F

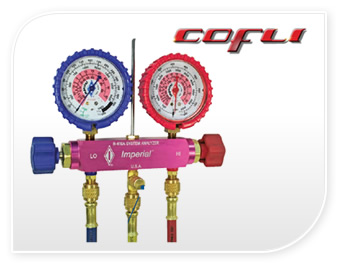

Service Manifolds


4 valv efficiency Vacuum, low side, high side and refrigerant lines are individualy connected and controlled.



4 times faster evacuation 3/8 vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds.



Unique deep draw vacuum valve design. proven diaphgragm-type- soft seat valves require only fingertip pressure to close completely

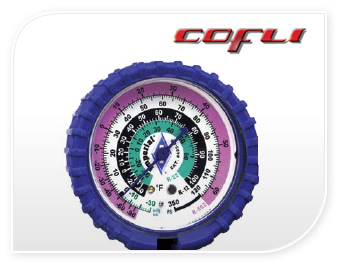

Precision Refrigerant Gauges


Superior Shock Resistance. Our unique design isolates the movement from the socket, reducing the effects of shock.



Superior Vibration Resistance. Our Enhanced vibration dampening design cushion the movement for flutter-free performance and extended gauge service life.



Superior Pulsation Resistance. After 10 million cycles, These gauges show three lines less wear than conventional gauges. the result is a longer lasting.

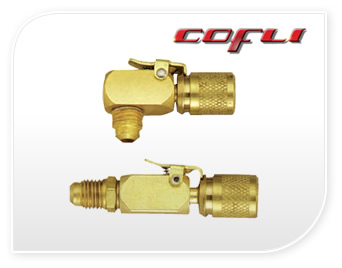

Kwik Coupler Adapters


The adapter set is intended for use with refrigeration and air conditioning services hoses when connecting to core valve types acces fittings. Conventional Threaded connecting converting to pull push operation which is faster easier and positive.



Features

Automatic fulla depression of core valves with out adjusment, regarless of core position.

Coupler halves separately connect to acces fitting and hose ends.

Eliminate hazardous discharge of refrigerant and oil from system.

Simplifies operation of charging.

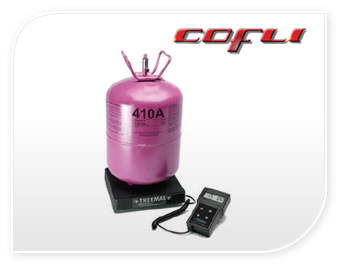

Charging Scales


The 4900 refrigeration charging scale is the ideal choice for field service work. with a high resolution LCD screeen that reads in both lbs. and kgs. This scale comes packaged in a convenient carrying case and is powered by (1) 9 volt battery.

Features

Battery operated (9V) for easy of portability

220lbs - 100Kgs

High resolution LCD Screen with backup capability

Automatically powers off

weight: 6.5 lbs.

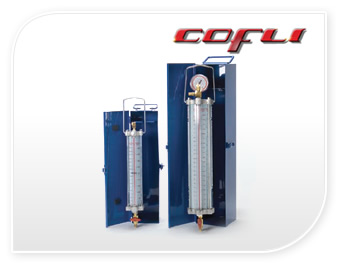

Charg-Check


Accurately charge your refrigeration system with charge-check, available in a number of sizes to suit your needs.



Features

Comes in three sizes to suit any application

Allows you to measure out precise quantities of refrigerant.

Helps speed up the charginf process by letting you charge with heat.

Allows you to carry small quantities of refrigerant to the job.

Can be calibrated for ambient temperature variations.

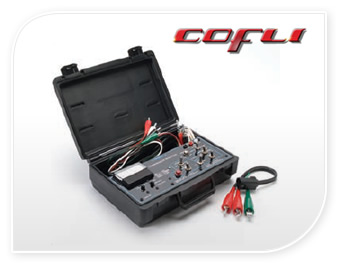

Hermeti-Check


Hermetic Compressors are permanently sealed which means there is little you can do to fix one that is broken on the inside. However with the following tools brought to you, you can test the compressor for any electrical problems.



Features

Tied up compressors may be freed by reversing motor rotations.

Tests windings for opens, continuity and grounds.

Test starts and run capacitators and system relays.

Measures start and run volts.



-------------->

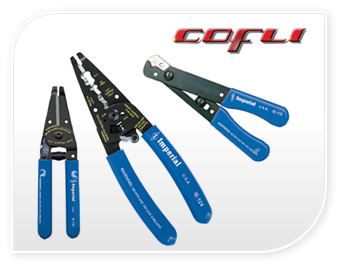

Strippers & Crimpers


TYPES

Upfront cutter

Apfront strippers

Crimper

Cutters

Ring Pliers
